1x2 Blockless PLC Splitter with SC Connector
| Min. Order: | 1 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CFR,CIF,EXW |
| Payment Terms: | L/C, T/T, WU, Money Gram |
| Supply Ability: | 10000000 |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Trading Company, Distributor/Wholesaler |
Product Detail
| Means of Transport: | Ocean, Air, Land |
|---|---|
| Brand Name: | T&J |
| Type: | PLC splitter |
| Fiber type: | G.657A with 0.9mm loose tube |
| Connector type: | SC/UPC |
| Cable length: | 1 meter or on request |
| Fiber count: | 1x2 |
| Operating wavelength(nm): | 1260-1650 |
| Operating temperature(°C): | -40 ~ +85°C |
| Package dimension(mm): | 60 * 7 * 4 |
| Origin: | China |
| Production Capacity: | 10000000 |
| Packing: | 2 pieces / box |
| Delivery Date: | 15 days |
Product Description
1x2 Blockless PLC Splitter with SC Connector
T&J Industrial Co., Ltd offers PLC splitter which is high quality passive device. It is especially for passive internet (EPON, BPON, GPON). And different package can follow client's different inquiry.
Data Sheet of different PLC Splitters:
| Operating Wavelength(nm) | 1260 - 1650 | Fiber Length(m) | ≥1.0 |
| P/N: | PLC102-0.9-1.0-NO-0.9-1.0NO | Package Dimension(mm) | 60 * 7 * 4 |
| Fiber Type | G.657A with 0.9mm loose tube | Storage Temperature | -40 ~ +85℃ |
| Connector Type | SC/UPC | Operating Temperature | -40 ~ +85℃ |
| Item | IL(dB) | PDL(dB) | RL(dB) | |||||
| Wavelength(nm) | 1310 | 1550 | 1310 | 1550 | 1310 | 1550 | ||
| Spec. | MAX3.8 | MAX0.2 | ≥55 | |||||
| Port1 | 3.66 | 3.56 | 0.03 | 0.02 | Pass | Pass | ||
| Port2 | 3.50 | 3.54 | 0.03 | 0.03 | Pass | Pass | ||
| Input | N/A | |||||||
| MAX. | 3.66 | 3.56 | 0.03 | 0.03 | N/A | |||
| MIN. | 3.50 | 3.54 | 0.03 | 0.02 | N/A | |||
| Average | 3.58 | 3.55 | 0.03 | 0.02 | N/A | |||
| Uniformity(≤0.4dB) | 0.16 | 0.03 | Directivit(dB) | ≥55 | ||||
Blockless PLC splitter

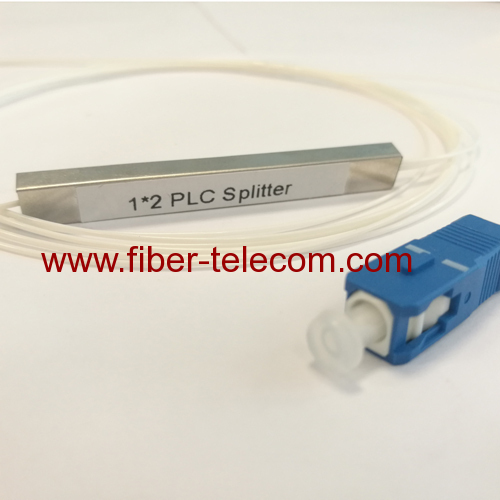

Real Shot:
1x2 Blockless PLC Splitter with SC Connector
