1x8 Blockless PLC Splitter with SC/APC Connector
| Min. Order: | 1 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CFR,CIF,EXW |
| Payment Terms: | L/C, T/T, WU, Money Gram |
| Supply Ability: | 10000000 |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Trading Company, Distributor/Wholesaler |
Product Detail
| Means of Transport: | Ocean, Air, Land |
|---|---|
| Brand Name: | T&J |
| Type: | PLC splitter |
| Cable diameter: | 0.9mm |
| Cable length: | 1 meter or on request |
| Fiber type: | Single mode |
| Fiber count: | 1x8 |
| Connector type: | LC,FC,SC,ST on request |
| Optics fiber Type: | SMF-28e or Customer specify |
| Operating wavelength(nm): | 1260-1650 |
| Operating temperature(°C): | -40-85°C |
| Origin: | China |
| Production Capacity: | 10000000 |
| Packing: | 2 pieces / box |
| Delivery Date: | 15 days |
Product Description
1x8 Blockless PLC Splitter with SC/APC Connector
T&J Industrial Co., Ltd offers PLC splitter which is high quality passive device. It is especially for passive internet (EPON, BPON, GPON). And different package can follow client's different inquiry.
Data Sheet of different PLC Splitters:
| Features: | Applications: | |||||||
| Low insertion loss and high uniform | Optical fiber communication systems | |||||||
| Low polarization relevant | FTTX application | |||||||
| Redundant reliability | CATV network | |||||||
| Low cost and small volume | Passive Optical Network (PON) | |||||||
| SurpassTelcordia requirements | Optical Amplifiers | |||||||
| Optical Access networks / LAN | ||||||||
| Testing equipments | ||||||||
| SPECIFICATIONS: | ||||||||
| Technical Parameter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | ||
| Optics fiber Type | SMF-28e or Customer specify | |||||||
| Operating wavelength(nm) | 1260-1650 | |||||||
| Insertion loss(dB) | Max.(P/S) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.5/13.7 | 16.5/16.9 | 21 | |
| Loss uniformity(dB) | Max. | 0.6 | 0.6 | 0.8 | 1.2 | 1.7 | 2.5 | |
| Return loss(dB) | MIN.(P/S) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 50 | |
| PDL(dB) | Max. | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| Directivity(dB) | MIN. | 55 | 55 | 55 | 55 | 55 | 55 | |
| Wavelength Dependent Loss(dB) | Max. | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 | |
| Temperature Dependent Loss(dB) | Max. | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | |
| Operating temperature(°C) | -40-85°C | |||||||
| Storage temperature(°C) | -40-85°C | |||||||
| Optics fiber length(m) | 1.5(±0.1) or Customer specify | |||||||
| Housing dimensions(mm) | PLC Optical Bare Splitters | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 50*7*4 | 60*12*4 | |
| Blockless PLC Splitter | 40*4*4 | 50*7*4 | 50*7*4 | 60*12*4 | 80*20*6 | / | ||
| PLC Splitter Module | 90*20*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 | ||
| Splitter ODF | 160*100*30 | 160*100*30 | 160*100*60 | 485*295*40 | 485*295*40 | 485*295*80 | ||
| Note:All specification exclude connectors | ||||||||
| Technical Parameter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | ||
| Optics fiber Type | SMF-28e or Customer specify | |||||||
| Operating wavelength(nm) | 1260-1650 | |||||||
| Insertion loss(dB) | Max. | 4 | 7.6 | 11 | 14.5 | 17.5 | 21.5 | |
| Loss uniformity(dB) | Max. | 0.8 | 1.5 | 1.5 | 2 | 2.5 | 2.5 | |
| Return loss(dB) | MIN. | 50 | 50 | 50 | 50 | 50 | 50 | |
| PDL(dB) | Max. | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 | |
| Directivity(dB) | MIN. | 55 | 55 | 55 | 55 | 55 | 55 | |
| Wavelength Dependent Loss(dB) | Max. | 0.6 | 0.6 | 0.6 | 0.8 | 1 | 1 | |
| Temperature Dependent Loss(dB) | Max. | 0.6 | 0.6 | 0.6 | 0.8 | 1 | 1 | |
| Operating temperature(°C) | -40-85°C | |||||||
| Storage temperature(°C) | -40-85°C | |||||||
| Optics fiber length(m) | 1.5(±0.1) or Customer specify | |||||||
| Housing dimensions(mm) | PLC Optical Bare Splitters | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 50*7*4 | 60*12*4 | |
| Blockless PLC Splitter | 40*4*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | / | ||
| PLC Splitter Module | 90*20*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 | ||
| Splitter ODF | 160*100*30 | 160*100*30 | 160*100*60 | 485*295*40 | 485*295*40 | 485*295*80 | ||
| Note:All specification exclude connectors | ||||||||

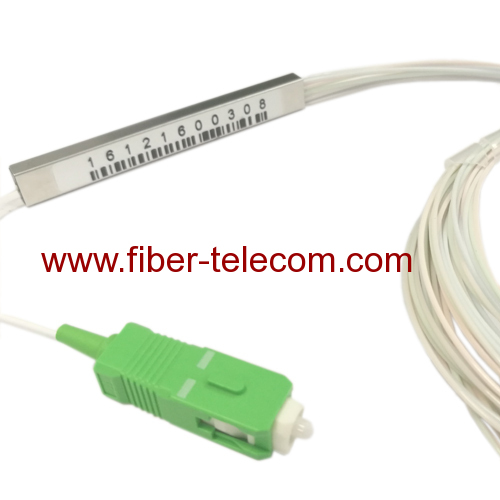

Blockless PLC splitter

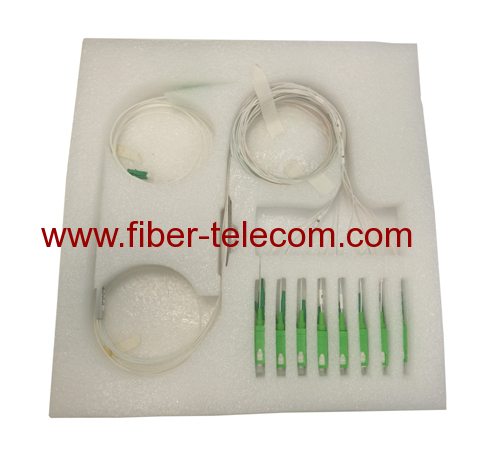

Packing of Blockless PLC splitters: 2 pieces / box
1x8 Blockless PLC Splitter with SC/APC Connector
