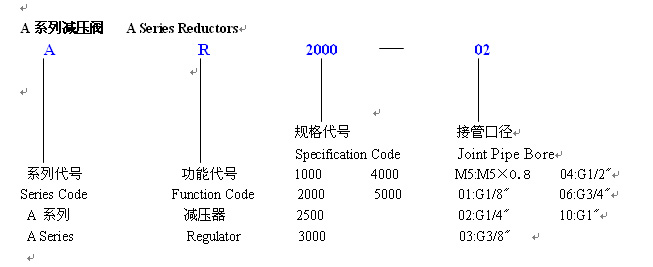

A Series Reductor
| Payment Terms: | L/C or TT |
|---|---|
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
Product Detail
| Model No.: | AR5000-10 |
|---|---|
| Means of Transport: | by sea/air/express |
| Brand Name: | Lian Da |
| Function: | used in automatic equipments |
| Packing: | in pallet or carton |
| Delivery Date: | 30 Days after payment |
Product Description
.jpg)
Technical Parameter:
| Model | AR1000-M5 | AR2000-01 | AR2000-02 | AR2500-02 | AR2500-03 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 |
| Rating Flux | 100 | 550 | 550 | 2000 | 2000 | 2500 | 2500 | 6000 | 6000 | 6000 | 8000 | 8000 |
| Joint Pipe Bore | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
| Max.Operating Pressure | 1.0Mpa | |||||||||||
| Ensure Pressure Resistance | 1.5Mpa | |||||||||||
| Working Temperature | 5-60℃ | |||||||||||
| Range of Adjustable Pressure | 0.05-0.70Mpa | 0.05-0.85Mpa | ||||||||||
| Valve Type | With Overflow | |||||||||||
