F.R.L Combination
| Payment Terms: | L/C or TT |
|---|---|
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
Product Detail
| Model No.: | AC3000-03 |
|---|---|
| Means of Transport: | by sea/air/express |
| Brand Name: | Lian Da |
| Function: | in automatic equipments |
| Packing: | in pallet or carton |
| Delivery Date: | 30 Days after payment |
Product Description
.jpg)

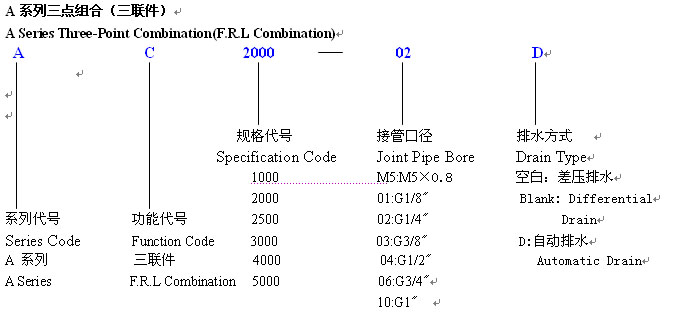

| A Series Three-Point Combination(F.R.L Combination) | |||
| Technical Parameter | |||
| Model | AC1000-M5 | AC2000-01 | AC2000-02 | AC2500-02 | AC2500-03 | AC3000-02 | AC3000-03 | AC4000-03 | AC4000-04 | AC4000-06 | AC5000-06 | AC5000-10 | |
| Rating Flux | 90 | 500 | 500 | 1500 | 1500 | 2000 | 2000 | 4000 | 4000 | 4500 | 5000 | 5000 | |
| Joint Pipe Bore | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 | |
| Filter Precision | 25µm | ||||||||||||
| Max.Operating Pressure | 1.0Mpa | ||||||||||||
| Ensure Pressure Resistance | 1.5Mpa | ||||||||||||
| Working Temperature | 5-60℃ | ||||||||||||
| Range of Adjust Pressure | 0.05-0.7Mpa | 0.05-0.85Mpa | |||||||||||
| Recommended Oil | ISOVG32 | ||||||||||||
| Container Material | Polycarbonate | ||||||||||||
| Protective Cover | Not Available | Available | |||||||||||
| Drain Function | Differential Drain | Differential Drain\Automatic Drain | |||||||||||
| Valve Type | With Overflow | ||||||||||||
| Composing Elements | Filter | AF1000-M5 | AF2000-01 | AF2000-02 | AF3000-02 | AF3000-02 | AF3000-02 | AF3000-03 | AF4000-03 | JAF4000-04 | AF4000-06 | AF5000-06 | AF5000-10 |
| Regulator | AR1000-M5 | AR2000-01 | AR2000-02 | AF2500-02 | AF2500-02 | AR3000-02 | AR3000-03 | AR4000-03 | JAR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 | |
| Lubricator | AL1000-M5 | AL2000-01 | AL2000-02 | AL3000-02 | AL3000-02 | AL3000-02 | AL3000-03 | AL4000-03 | JAL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 | |
