VOSSLOH SCREW Rail Sleeper Screw
| Min. Order: | 5000 Piece/Pieces |
|---|---|
| Payment Terms: | D/P, D/A, T/T |
| Supply Ability: | 100000 ps/month |
| Place of Origin: | Jiangsu |
Company Profile
| Location: | Suzhou, Jiangsu, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
Product Detail
| Model No.: | SS SCREW SPIKE |
|---|---|
| Means of Transport: | Ocean |
| Brand Name: | SM |
| STEEL: | Screw Spike |
| Production Capacity: | 100000 ps/month |
| Packing: | according to clients' requirement |
| Delivery Date: | 40 days |
Product Description

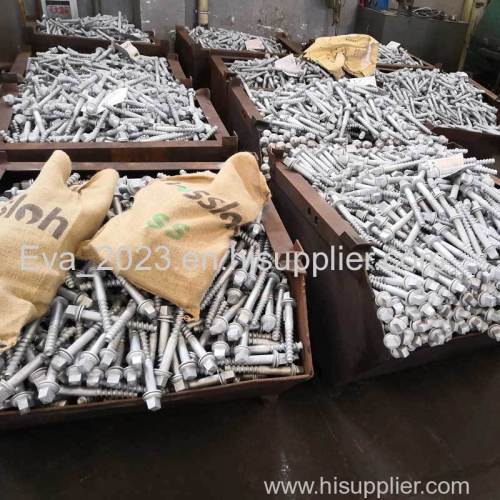

VOSSLOH SCREW Rail Sleeper Screw
SS8 screw spikes are used to secure the steel rail to the wooden or concrete sleeper, ensuring the rail stays in place and aligned.
Kunshan Signum Machinery Technology Co., Ltd. specialise in manufacturing railway Screw Spikes to various international standards, including AREMA for North America, EN 13481 and UIC 864-2 for European railways, and GB for China. We are able to customize railway screw spikes according to our customer's specific requirements.This includes custom length, thread, material, grade and finish.
The primary purpose of an SS8 screw spike is to provide a strong and reliable connection between the rail and the sleeper, ensuring the track remains stable and minimizes the risk of derailment.
SS8 is a specific type of screw spike, and there are other types like SS5, SS25, SS35, etc., each with slightly different dimensions and specifications. They are used with wooden sleepers, and when used with concrete sleepers, they are often used in conjunction with a plastic dowel.
SS8 railway screw spike, SS25 railway screw spike and 3V railway screw spike are our featured screw spikes.
Ss Series Screw spikes
No. | Type | Specification(mm) | Weight/kg | Surface | Standard |
Ss Series Sleeper Screw | Ss 1/130 | M22*130 | 0.451 | Zinc,Plain, Black Oil,etc | UIC,AREMA,JIS,GB or according to your requirements. |
Ss 1/150 | M22*150 | 0.478 | |||
Ss 2/180 | M22*180 | 0.595 | |||
Ss 5/150 | M24*150 | 0.545 | |||
Ss 6/130 | M26*130 | 0.658 | |||
Ss 6/150 | M26*150 | 0.702 | |||
Ss 6/170 | M26*170 | 0.785 | |||
Ss 7/180 | M24*180 | 0.636 | |||
Ss 8/140 | M24*140 | 0.528 | |||
Ss 8/150 | M24*150 | 0.548 | |||
Ss 8/160 | M24*160 | 0.568 |
3V Screw Spikes
Type | Dimension(mm) | Weight (Kg) |
V20-135 | M20×135 | 0.438 |
V23-115 | M23×115 | 0.48 |
V23-135 | M23×135 | 0.55 |
V23-155 | M23×155 | 0.62 |
Signum workshorp covers an area of 12,000m².
With ISO9001-2008 Certificate and approved license from China's Railway Ministry.
Standard or customized products are all available according to the requirements of the clients.
Our products all pass strict testing with a full set of inspection facilities.
With detailed requirements or drawings, you can get a quote to you within 48 hours.
For some rail fasteners, we accept to send you the free samples with freight collect. Find the Rails and Fasteners you need.
We can also supply many kinds of rail sleeper screw spikes according to customer's drawing and specification.
