Professional Manufacture CNC Coil Winding Machine for Current Transformer
| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CIF,EXW |
| Payment Terms: | T/T |
| Supply Ability: | 20 Sets per month |
| Place of Origin: | Jiangxi |
Company Profile
| Location: | Pingxiang, Jiangxi, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company, Service |
Product Detail
| Model No.: | VOL-1500E |
|---|---|
| Means of Transport: | Ocean, Air, Land |
| Model Number: | VOL-1500E |
| Color: | Blue,Calx,Customizable |
| Max outline size of machine tool: | 1300*1000*1500mm |
| Diameter rang of windable electromagnetic wire: | Φ1.0~3.5mm |
| Min inner diameter of winded coils: | Φ200mm |
| Max outer diameter of winded coils: | Φ1500mm |
| Max height of winded coils: | 250mm |
| Max winding rotation speed: | 100rpm |
| Machine tool power: | 2.2kW |
| After-sales service provided: | Engineers available to service machinery overseas, Online support, Video technical support, Field maintenance and repair |
| Production Capacity: | 20 Sets per month |
| Packing: | using plastic film then into container |
| Delivery Date: | 45 days after place an order |
Product Description
Main technical parameters
| Diameter rang of windable electromagnetic wire | Φ1.0~3.5mm |
| Min inner diameter of winded coils | Φ200mm |
| Max outer diameter of winded coils | Φ1500mm |
| Max height of winded coils | 250mm |
| Max winding rotation speed | 100rpm |
| Machine tool power | 2.2kW |
| Max outline size of machine tool | 1300*1000*1500mm |

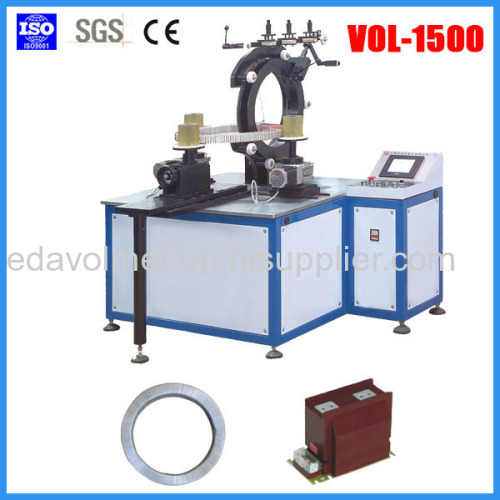

VOL-1500 large-sized CNC circular winding machine is designed according to the technology requirements of large-sized circular coil, it is the new generation of circular winding equipment specially designed for solving the problem of large manual winding labor intensity, low working efficiency, incorrect turns of large-sized circular coils.
This machine adopts the international most advanced PLC system from Japan Mitsubishi, it sets the procedures through the display screen, so as to extremely strong the reliable operation of the whole machine. lts electric parts are designed in modularization, which can reduce the maintenance cost. The main driving operation uses the frequency-conversion speed adjustment mode, which keeps the advantages of short driving chain, large startup torque, wide speed adjustment range, energy saving and low noise and brings the convenient adjustment, high distribution precision and large torque.
Due to PLC programming technology, it has the machine tool wire-storage automatic computation, automatic counting, automatic stop, stop memory and so on, and simplifies the operation greatly. This machine has the multi-wire winding mechanism, which can realize the dual-wire or multi-wire multi-layer winding, so as to improve the production efficiency and product quality.
To sum up,VOL-1500 large-sized CNC circular winding machine is featured with high winding precision, strong general purpose, wide application range, reliable system operation. It is the domestic most advanced large-sized circular winding equipment.
