hd sdi h.264 iptv 4 channel encoder adaptable voltage AC 110V/220V +-10%
| Min. Order: | 1 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CFR,CIF,EXW |
| Payment Terms: | Paypal, L/C, T/T, WU, Money Gram |
| Supply Ability: | 10000/month |
| Place of Origin: | Sichuan |
Company Profile
| Location: | Chengdu, Sichuan, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
Product Detail
| Model No.: | COL5100D |
|---|---|
| Means of Transport: | Express, Ocean, Air, Land |
| Video Encoding: | MPEG4 AVC/H.264 High Profile Level 4.0 for HD |
| Audio Encoding: | MPEG-1 Layer 2 |
| Power Supply: | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz,25W |
| Temperature range: | 0~45℃(Operation), -20~80℃(Storage) |
| Multiplexing: | 1xASI input multiplexed with 4 encoding channel SPTS |
| Input: | 1xASI input, BNC interface |
| Stream output: | 2xASI outputs, BNC interface |
| Production Capacity: | 10000/month |
| Packing: | Standard export carton with foam, 1pcs/carton with one power adapter and manual |
| Delivery Date: | 3-5 days after advance payment |
Product Description
hd sdi h.264 iptv 4 channel encoder adaptable voltage AC 110V/220V +-10%
Outline

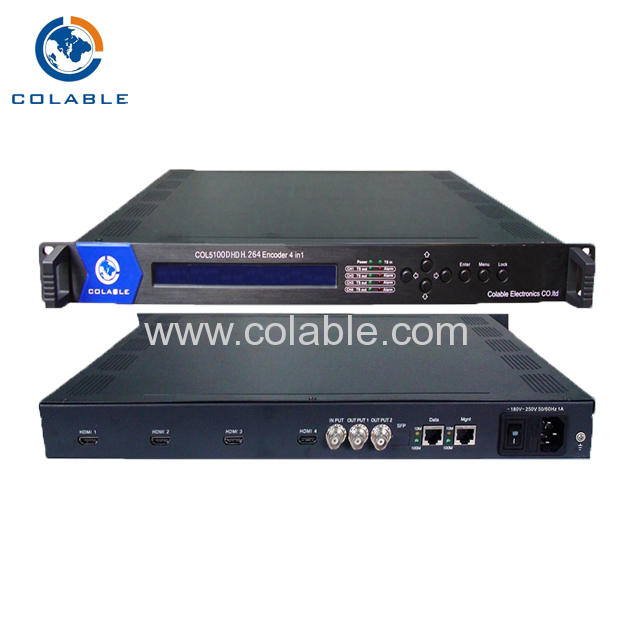

The COL5100D HD H.264 Encoder 4 in 1 has 4 channel HDMI input interfaces,
supporting MPEG4AVC/H.264 High Profile code format. It is a professional HD
audio & video encoding and multiplexing device with powerful functionality. This
device can simultaneously encode 4 channel HD programs, moreover, it has an
ASI input and can multiplex the input TS with the 4 encoded SPTS to generate
a MPTS output. Also, the PSI/SI information can be inserted into MPTS output.
In conclusion, its high integrated and cost effective design makes the device wi
dely used in varieties of digital distribution systems.
Features
1. Audio MPEG1 Layer 2, AAC(optional)
2. 4 channel HDMI(SDI) inputs, 1 ASI input supports multiplexing
3. H.264/AVC High Profile Level 4.0 video encoding support, advanced video
pretreatment algorithm
4. Real- time effective output bit-rate monitoring
5. 720P, 1080I,1080P HD video format support
6. MPTS/4SPTS ASI output
7. LCD / keyboard operating
8. SNMP Network Management support
9. MPTS and 4 channel SPTS over UDP unicast/multicast output
Technical Specifications
Input | 4×HDMI (SDI) inputs | |
1×ASI input, BNC interface | ||
Video | Resolution | 1920*1080_59.94P, 1920*1080_50P |
1920×1080_59.94i, 1920×1080_50i | ||
1280×720_59.94p, 1280×720_50p | ||
720x576_50i, 720x480_59.94i | ||
Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 for HD | |
Bit-rate | 0.8Mbps~19Mbps (each channel) | |
Rate Control | CBR/VBR | |
GOP Structure | IBBP | |
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |
Audio | Encoding | MPEG-1 Layer 2 |
Sampling rate | 48KHz, 44.1KHz,32KHz | |
Resolution | 24-bit | |
Bit-rate | 64Kb/s~384Kb/s each channel | |
Multiplexing | 1×ASI input multiplexed with 4 encoding channel SPTS | |
Stream output | 2×ASI outputs, BNC interface | |
MPTS and 4 SPTS over UDP,1000 Base-T Ethernet interface (UDP unicast / multicast) | ||
System function | LCD/keyboard operating, SNMP support Chinese-English control interface | |
Ethernet software upgrade | ||
General | Dimensions
| 480mm×456mm×45mm |
Approx weight | 5Kg | |
Temperature range | 0~45℃(Operating), -20~80℃(Storage) | |
Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |
Power consumption | 25W | |
