KGS Taper Roller Bearing
| Min. Order: | 500 Set/Sets |
|---|---|
| Trade Term: | FOB,CFR,CIF,EXW |
| Payment Terms: | Paypal, L/C, T/T |
| Supply Ability: | 500000 |
| Place of Origin: | Shaanxi |
Company Profile
| Location: | Xi'an, Shaanxi, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
Product Detail
| Model No.: | 30220 |
|---|---|
| Means of Transport: | Ocean |
| Brand Name: | KGS |
| Structure: Taper: | Type: Roller |
| Brand Name: KGS: | Bore Size: 100mm |
| Outside Diameter: 180 mm: | Seals Type: Open |
| Model Number: 30220: | Material: Bearing Steel |
| Cr: 225 kN: | Cor: 350 kN |
| Breadth: | 34mm |
| Weight: | 3.72kg |
| Production Capacity: | 500000 |
| Packing: | Industrial packaging |
| Delivery Date: | 12-20 days |
Product Description
Product show:

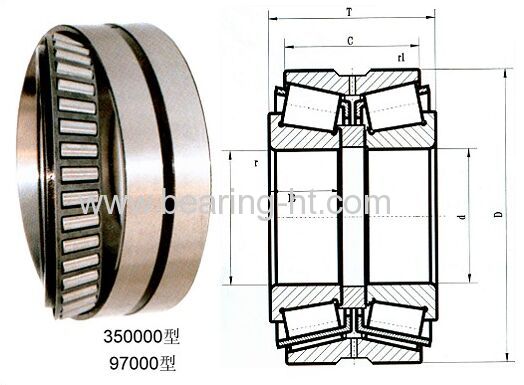

Tapered roller bearings bear mainly radial-based radial and axial joint load. The bearing load carrying capacity depends on the race angle of the outer ring, and the bigger, the larger. This kind of bearing belongs to separable bearings, which could be separated into single row, double rows and four rows tapered roller bearing according to the row number of the rolling elements in bearing.
Tapered roller bearing is widely used in automotive, rolling mill, mining, metallurgy, plastics machinery and other industries.
| Taper roller bearing | Model number | ID(mm) | OD(mm) | Width(mm) | Grease lubrication speed(r/min) | Oil lubrication speed(r/min) | Weight(kg) |
| 30220 | 100 | 180 | 34 | 1900 | 2600 | 3.72 | |
| 32004 | 20 | 42 | 15 | 8500 | 11000 | 0.095 | |
| 32006 | 30 | 55 | 16 | 6300 | 8000 | 0.16 | |
| 32019 | 95 | 145 | 32 | 2400 | 3200 | 1.84 | |
| 32026 | 130 | 200 | 45 | 1600 | 2000 | 4.94 | |
| 32044 | 220 | 340 | 76.5 | 800 | 1000 | 24.4 |
Tapered roller bearings are usually separated type, that is, by inner ring with roller and cage components of cone inner ring components can be installed separately with cone outer ring (outer ring).
For high load high speed circular cone roller bearings, adjust clearance, must consider the effect of temperature on the axial clearance, clearance reduction is estimated, will cause the temperature rise, that is to say, the axial clearance to properly adjust a bit bigger.
Package:
Industrial package,commerical package or according to your customer's requirements.
Delivery time:
within 25 days or received your downpayment.
