2/2 ss316 coffee solenoid valve
| Min. Order: | 100 Piece/Pieces |
|---|---|
| Payment Terms: | T/T, WU |
| Supply Ability: | 20000/MONTH |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer |
| Main Products: | Stainless Steel Valves, High Pressure Solenoid Valve, Diaphragm Valve, Water Solenoid Valve, STEAM SOLENOID VALVES |
Product Detail
| Model No.: | YSF024-J316 |
|---|---|
| Means of Transport: | Ocean, Air, Land |
| Power: | Solenoid |
| Standard or Nonstandard: | Standard |
| Pressure: | Medium Pressure |
| Structure: | Diaphragm |
| Material: | Stainless Steel |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Brand Name: | ROUND STAR |
| Specification: | DIRECT ACTION |
| Function: | COFFEE MACHINE |
| Patent Rights: | NONE |
| Certificate: | CE ISO9000 |
| Export Area: | Asia,America,Europe and so on |
| Cooperative Company: | NONE |
| Production Capacity: | 20000/MONTH |
| Packing: | CARTON |
| Delivery Date: | 20DYAS AFTER RECEIVING DP |
Product Description
e
YSF Irons and Coffee Pot Solenoid Valve
Features
1. The YSF irons and coffee pot solenoid valve is a valve for use with water, gas and liquid in low viscosity.
2. Working pressure: 0.021.0Mpa.
3. Operating temperature: -5180℃.
4. Acting pattern of the YSF irons and coffee pot solenoid valve: direct acting.
5. Working pattern: normally closed.
6. Working voltage: AC220240V.
7. Voltage range: ±10%.
8. Insulation class: H.
9. Service life: 500000 times.
10. The YSF irons and coffee pot solenoid valve is sealed by the VITON or the silicon rubber.
11. Materials: brass.
thread; G1/8", NPT1/8"
In case use for special voltage, please state with your order.
YSF Irons and Coffee Pot Solenoid Valve
Features
1. The YSF irons and coffee pot solenoid valve is a valve for use with water, gas and liquid in low viscosity.
2. Working pressure: 0.021.0Mpa.
3. Operating temperature: -5180℃.
4. Acting pattern of the YSF irons and coffee pot solenoid valve: direct acting.
5. Working pattern: normally closed.
6. Working voltage: AC220240V.
7. Voltage range: ±10%.
8. Insulation class: H.
9. Service life: 500000 times.
10. The YSF irons and coffee pot solenoid valve is sealed by the VITON or the silicon rubber.
11. Materials: brass.

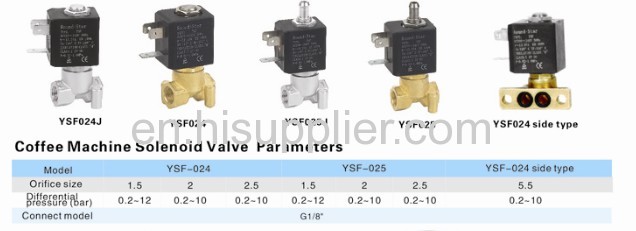

| Mode | Orifice size | Voltage | working pressure | Sealer | Type | Body material |
| YSF024 | 1.5mm | DC24V AC220V AC110V | 0~1.2MPa | Viton | Normally closed | SS316 |
| YSF024 | 2.0mm | DC24V AC220V AC110V | 0~1.0MPa | Viton | Normally closed | SS316 |
| YSF025 | 1.5mm | DC24V AC220V AC110V | 0~1.2MPa | Viton | Normally closed | SS316 |
| YSF025 | 2.0mm | DC24V AC220V AC110V | 0~1.0MPa | Viton | Normally closed | SS316 |
thread; G1/8", NPT1/8"
In case use for special voltage, please state with your order.
