DFD-J 2WAY WATER SS316 304 GAS SOLENOID VALVE G1/2''~G2''

22.99~403.2 USD

Location:	Ningbo, Zhejiang, China (Mainland)
Business Type:	Manufacturer
Main Products:	Stainless Steel Valves, High Pressure Solenoid Valve, Diaphragm Valve, Water Solenoid Valve, STEAM SOLENOID VALVES

Model No.:	DFD
Means of Transport:	Ocean, Air, Land
Power:	Solenoid
Standard or Nonstandard:	Standard
Pressure:	Low Pressure
Structure:	Diaphragm
Material:	Stainless Steel
Temperature of Media:	Medium Temperature
Media:	Water
Brand Name:	round star
authentication:	CE, TUV, FDA, ROHS
Our foundation:	1965
Our advantage:	focus on fluid solenoid valve over 45 years
Our location:	Yuyao, Zhejiang
Body material:	Brass/ SS304/316/ Cast iron
Production Capacity:	1000 per month
Packing:	regular package
Delivery Date:	7 days after your payment

Show

Specifications

electric solenoid water valve
1) water application
2)max12bar,IP65

normally closed IP65 air oil water solenoid valve
Pilot Operated Normal Pressure – 3/8″-2″

Valves available in normally closed and normally open constructions.

Available in either AC or DC operated with brass or Stainless Steel bodies.

- Media: Water, Air, Oil (below 20cst)

--Temperature: -5 ~80

--Mode of action: Pilot operated

-- Pressure: Normally Closed 12bar; Normally Open 8bar

--Function type: Normally Closed (N/C), Normally Open(N/O)

--Body material: Stainless steel/ Brass

-- Sealing material: NBR/ FKM/ EPDM

--Protection class: IP65

Paremeter

MODEL	DFD-10J	DFD-15J	DFD-20J	DFD-25J	DFD-32JF	DFD-40JF	DFD-50JF
MOTION TYPE	PILOT OPERATED
G CONNECTION	3/8"	1/2"	3/4"	1"	1-1/4" OR FLANGE	1-1/2" OR FLANGE	2" OR FLANGE
NOMINAL DIAMETER MM	15	15	20	25	32	40	50
CV VALUE	2.2	3.73	7	11.1	14	24.5	35
PRESSUREBAR	NORMALLY CLOSED 0.3-12 ( 0.3-16); NORMALLY OPEN: 0.3-8
MEDIUM TEMP	NBR -5-80 SPECIAL VITON (-10-130)
POWER	220V-230V AC /50-60HZ; 110V-120V AC/50-60HZ; DC 24V; DC 12V;RANGE;+/- 10%

Pictures

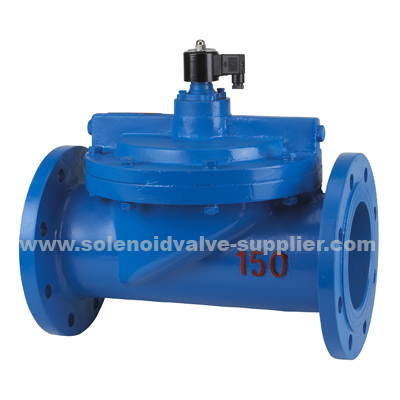

                 DFD-50JF

                  DFD-80CF

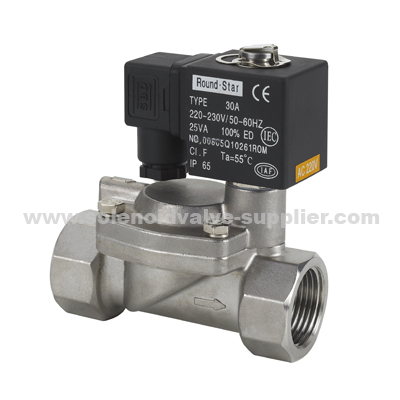

                      DFD-25

                  DFD-25J
