mini square type industrial ammeter
| Min. Order: | 1 Piece/Pieces |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, T/T, paypal |
| Supply Ability: | 40000pcs/month |
| Place of Origin: | Jiangsu |
Company Profile
| Location: | Suzhou, Jiangsu, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
| Main Products: | Panel Meter, Power Meter, Hz Meter, Current Shunt, Movements |
Product Detail
| Model No.: | BP-15 |
|---|---|
| Means of Transport: | Ocean, Air |
| Brand Name: | KDSI |
| name: | BP-15 mini square type industrial ammeter |
| pointer color: | Red |
| certificate: | CE ISO9000 |
| HS CODE: | 90283090 |
| N.W: | 48g |
| G.W: | 50g |
| Working Temperature: | -20Degree-+50Degree |
| accuracy: | 1.5 |
| waterproof: | yes |
| size: | 66*24*68.5mm |
| Production Capacity: | 40000pcs/month |
| Packing: | Standard exporting carton 100PCS/CARTON |
| Delivery Date: | 20-30 days after received 30% T/T payment |
Product Description
product information
BP-15 mini square type industrial ammeter
DC Current
| Model | BP-15 | |
| Ranges | uA | 50uA 100uA 150uA 250uA 800uA |
| mA | 2-10mA 4-20mA 1mA 10mA 500mA 800mA | |
| A | 1A 2A 3A 4A 5A 10A 15A 20A 25A 30A | |
For connecting to external shunt | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A |
DC Voltage
| Ranges | V | 0.5V 1V 10V 25V 50V 100V 250V 500V 600V |
DC Ammeter and Voltmeter
Measuring the DC current and voltage with liner scale .Moving coil movement.
Scale plate
Can be 100% 150% 180% OR RPM Also can design according to customer requirement.
BP-15 mini square type industrial ammeter

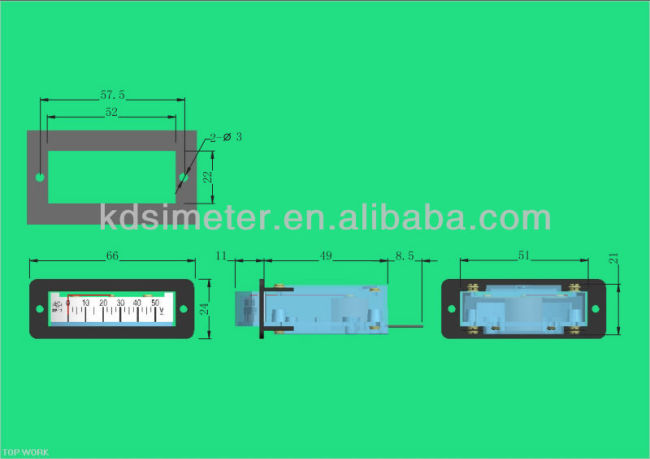

dimensioned drawing
BP-15 mini square type industrial ammeter
breakdown drawing
The KDS types of instrument
1.glass
We use full line of glass ,such as ,high clear glass,antigiare glass,tempered glass,transparent
plastic material ect.
2.Scale Plate
The normal scale plate is made of aluminum alloy material white printed with black
scales,values,units,
techniques symbols, ect.Dails with special requirements are available upon request. such ac
color ,scale with lighting functions and PVC noctilucence are available upon request.
3.pointer
Normally,the pointer is made of aluminum alloy , it is black,and red ,white,blue are available
upon request .
supplementary pointer can be added to indicate a defaulted value.
4. Zero Adustment
Except for instruments with no zero reading,all instrument have zero adjustment from the front.
BP-15 mini square type industrial ammeter
product shows
