1.0 Megapixel Vandalproof Day & Night Indoor Whelk Surveillance IP Camera
| Min. Order: | 1 Piece/Pieces |
|---|---|
| Payment Terms: | T/T, WU |
| Supply Ability: | 10000pcs per month |
| Place of Origin: | Guangdong |
Company Profile
| Location: | Shenzhen, Guangdong, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
| Main Products: | 1080P HD SDI CCTV Cameras Security, 1080P HD SDI Security Cameras, High Definition SDI CCTV Security Cameras, 1080P HD SDI CCTV Security Cameras, HD SDI CCTV Security Cameras |
Product Detail
| Model No.: | DR-IP5N302DXH1 |
|---|---|
| Means of Transport: | Ocean, by Express, Air |
| Image Sensor: | 1/4" Progressive Scan OV CMOS |
| Compression: | H.264 High Profile |
| Imageresolution: | Max:1280*720 |
| IR-CUT: | Support |
| IR distance: | 20~30meters |
| Waterproof& dustproof: | IP66, vandal-proof |
| Lens mount: | CS |
| Frame rate: | 30fps(1280*720) |
| Icloud Function: | Support |
| Production Capacity: | 10000pcs per month |
| Packing: | 1pc per polybag, color box |
| Delivery Date: | 10 working days |
Product Description

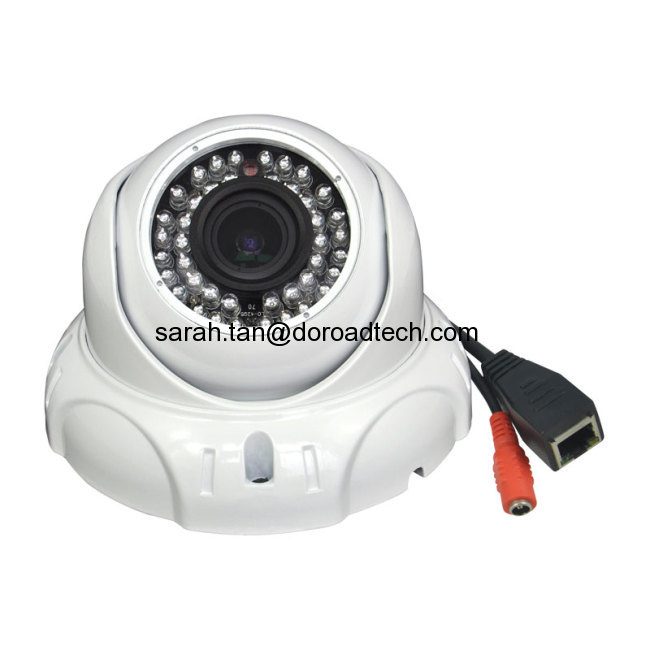

1.0 Megapixel 720P Vandalproof Day & Night Indoor Whelk IP Camera DR-IP5N302DXH1
IP Security Cameras
1. 1/4" Progressive Scan OV CMOS
2. OV9712 Sensor with IR-CUT
3. Hi 3518 Chipset
4. 720P(1280*720) Output/1.0 Megapixel
5. Video System NTSC/PAL
6. Mechanical ICR Synchronous True O/N
7. Advanced H.264 High Profile Video Compression
8. Dual Stream Storage & Network
9. Full HP Fixed 6.0/8.0mm Lens
10. 20-30 Meter illumination
11. Supports iPhone, iPad, BlactBerry, Android, Symbian, Windows Mobile Remote Monitoring
12. Supports ONVIF 2.2 Version Protocol
13. 10/100 Mbps Ethernet Port
14. Supports iCloud(P2P) Function
15. Supports Google Chrome, Internet Explorer, Mozilla Firefox Safari Browser
Model | DR-IP5N301EXHB | |
Device | 2.0 Megapixel SONY IMX222 Sensor | |
Size | 1/2.8 inch | |
Effective Pixels | 1080P:1920*1080 | |
Min. Scene Illumination | Color | 0.1LUX (F1.2) |
B/W | YES | |
IR Sensitivity | Yes | |
IR Cut | Yes | |
Lens | Lens | 6.0mm |
Viewing Angle | 50° | |
Linux System | Internal Linux system | |
Day/ Night | IR distance | 15-25M |
Functions | Motion Detection | Yes |
Electronic Shutter | 1/5-1/10,000sec | |
BLC | Turn/Off | |
AGC | Auto | |
White Balance | Auto(indoor/outdoor) | |
S/N Ratio | S/N Ratio | ≥50dB |
Video Compression | Compression | H.264 |
Picture Resolution | 1080P:1920*1080 | |
Bit Rate | 253K~8.0M bps | |
Image Frame Rate | 25FPS | |
Casing | Mount Types | Wall Bracket |
Network | Ethernet | Ethernet(10/100Base-T), RJ-45 connector |
Protocol | TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, RTP and RTCP | |
Software | Web Browser | Microsoft Internet Explorer under 11 |
SDK | OPEN | |
Security | Administrator password protection | |
Operating | Temperature | -30℃~60℃ |
Humidity | -10～85% | |
Power Consumption | 2.0W~5.8W | |
Applicable | Family, office, residential, factories, parking lot |
