Push and Pull Type Hydraulic Quick Coupler With Male Thread
| Min. Order: | 50 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, D/A, T/T, WU |
| Supply Ability: | 10000sets/month |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
| Main Products: | Brass Male End Fitting, Brass Male Thread Coupling Fittings, Brass Male Equal Tee Fittings, Brass Male Coupling Fittings, Hydraulic Quick Coupling With Female Plug |
Product Detail
| Model No.: | H203-SM |
|---|---|
| Means of Transport: | Ocean, Air, Land |
| Brand Name: | OEM |
| Specifications: | 3/8"~3/4" |
| Rated Pressure: | 3000PSI |
| Rated Flow: | 3~224GPM |
| Temperture Range: | -20℃~+80℃ |
| Material of Seal: | PTFE |
| Surface: | Color Zinc Plated |
| Shape: | Hexagon |
| Technics: | Forging and machine |
| Export Area: | All over the world |
| Material of Body: | Steel |
| Production Capacity: | 10000sets/month |
| Packing: | plastic bag+inner box+cartons |
| Delivery Date: | 15days |
Product Description
Push and Pull Type Hydraulic Quick Coupler With Male Thread
1. Products features
A: The H203 series hydraulic quick coulpings are maninly used for construction equipment,forest equipment,hydraulic machiney and oil equipment and other required hydraulic applications.
B: Poppet valves are available to prevent uncoulped leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expenditely.
C: H203series conforms to the standard ISO5675.
D: Compatible with PARKER 4250 series, FASTER CVP-CNV series.
E: Critical parts are hardened for durability.
2. Pressure Drop-in PSID
3. Drawing and technology data
| |||||

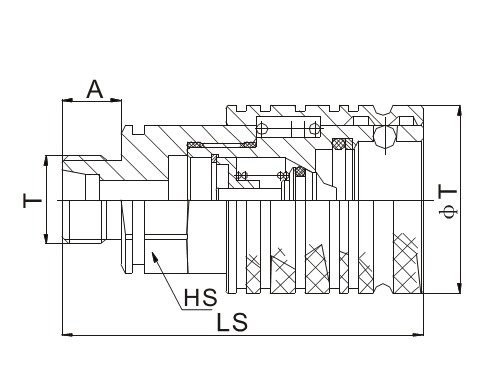

Part No. | LS | ￠D | HS | A | T |
H203-04SM8L | 73 | 38 | 27 | 12 | M14*1.5 |
H203-04SM10L | 73 | 38 | 27 | 12 | M16*1.5 |
H203-04SM12L | 73 | 38 | 27 | 12 | M16*1.5 |
H203-04SM15L | 75 | 38 | 27 | 14 | M22*1.5 |
H203-04SM18L | 75 | 38 | 27 | 14 | M26*1.5 |
H203-04SM10LS | 73 | 38 | 27 | 12 | M18*1.5 |
H203-04SM12LS | 73 | 38 | 27 | 12 | M20*1.5 |
H203-04SM14LS | 75 | 38 | 27 | 14 | M22*1.5 |
H203-04SM16LS | 75 | 38 | 27 | 14 | M24*1.5 |
H203-04SM20LS | 94.8 | 38 | 30 | 35 | M30*1.5 |
| |||||

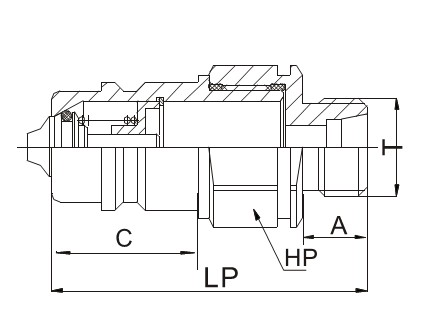

Part No. | LS | C | HP | A | T |
H203-04PM8L | 58 | 27 | 27 | 12 | M14*1.5 |
H203-04PM10L | 58 | 27 | 27 | 12 | M16*1.5 |
H203-04PM12L | 58 | 27 | 27 | 12 | M16*1.5 |
H203-04PM15L | 60 | 27 | 27 | 14 | M22*1.5 |
H203-04PM18L | 60 | 27 | 27 | 14 | M26*1.5 |
H203-04PM10LS | 58 | 27 | 27 | 12 | M18*1.5 |
H203-04PM12LS | 58 | 27 | 27 | 12 | M20*1.5 |
H203-04PM14LS | 60 | 27 | 27 | 14 | M22*1.5 |
H203-04PM16LS | 60 | 27 | 27 | 14 | M24*1.5 |
H203-04PM20LS | 81 | 27 | 30 | 35 | M30*1.5 |
3. Packing
