Open-Close Type Hydraulic Quick Coupling With Black Surface
| Min. Order: | 50 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, D/A, T/T, WU |
| Supply Ability: | 10000sets/month |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
| Main Products: | Brass Male End Fitting, Brass Male Thread Coupling Fittings, Brass Male Equal Tee Fittings, Brass Male Coupling Fittings, Hydraulic Quick Coupling With Female Plug |
Product Detail
| Model No.: | Q/ZB275-77 |
|---|---|
| Means of Transport: | Ocean, Air, Land |
| Brand Name: | OEM |
| Specifications: | M16*1.5~M68*2 |
| Rated Pressure: | 2000PSI~5000PSI |
| Surface: | Black |
| Temperture Range: | -20℃~+100℃ |
| Material of Seal: | Flourocarbon |
| Technics: | Forged and machine |
| Material of body and plug: | Brass |
| Spring: | Stainless Steel |
| Positioning Ball: | Stainless Steel |
| Export Area: | All over the world |
| Production Capacity: | 10000sets/month |
| Packing: | plastic bag+inner box+cartons |
| Delivery Date: | 15days |
Product Description
Open-Close Type Hydraulic Quick Coupling With Black Surface
1. Products features
A: The Q/ZB275-77 series hydraulic quick coulpings are maninly used for construction equipment,forest equipment,hydraulic machiney and oil equipment and other required hydraulic applications.
B: Poppet valves are available to prevent uncoulped leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expenditely.
C: Critical parts are hardened for durability.
D: The couread coupling can meet the standard of domestic oil field, the thread connection, is the most widely used one of the hydraulic quick coupling.
2. Specifications.
Specifications | |||||||||
Size | M16*1.5 | M22*1.5 | M27*1.5 | M30*1.5 | M36*2 | M42*2 | M52*2 | M60*2 | M68*2 |
Pressure (PSI) | 5000 | 5000 | 5000 | 5000 | 4000 | 4000 | 3000 | 2000 | 2000 |
Temperature Range | -20℃~+100℃ | ||||||||
Seal Material | Flourocabon | ||||||||

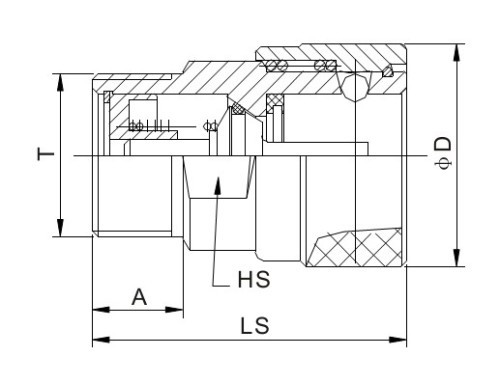

3. Drawing and technology data
| |||||
Part No. | LS | ￠D | HS | A | T |
Q/ZB275-7706SM | 44 | 28 | 19 | 13 | M16*1.5 |
Q/ZB275-7708SM | 46 | 31 | 22 | 13 | M22*1.5 |
Q/ZB275-7710SM | 52 | 36 | 27 | 13 | M27*1.5 |
Q/ZB275-7715SM | 56 | 40 | 30 | 16 | M30*1.5 |
Q/ZB275-7720SM | 65 | 48 | 36 | 16.5 | M36*2 |
Q/ZB275-7725SM | 78 | 56 | 46 | 20 | M42*2 |
Q/ZB275-7732SM | 84 | 66 | 55 | 22 | M52*2 |
Q/ZB275-7740SM | 93 | 77 | 65 | 26 | M60*2 |
Q/ZB275-7750SM | 99 | 82 | 70 | 30 | M68*2 |
| |||||

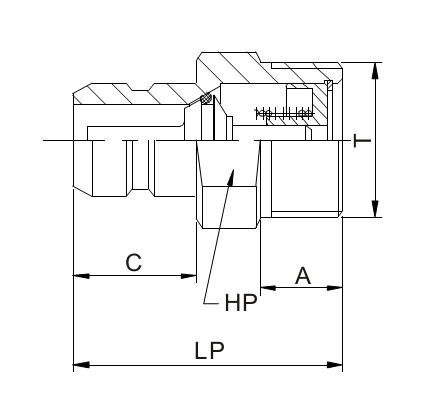

Part No. | LP | C | HS | A | T |
Q/ZB275-7706PM | 40 | 18 | 19 | 13 | M16*1.5 |
Q/ZB275-7708PM | 41 | 19 | 22 | 13 | M22*1.5 |
Q/ZB275-7710PM | 46 | 22 | 27 | 13 | M27*1.5 |
Q/ZB275-7715PM | 53 | 24 | 30 | 16 | M30*1.5 |
Q/ZB275-7720PM | 59 | 29 | 36 | 16.5 | M36*2 |
Q/ZB275-7725PM | 66 | 31 | 46 | 20 | M42*2 |
Q/ZB275-7732PM | 79 | 6 | 55 | 22 | M52*2 |
Q/ZB275-7740PM | 90 | 39.5 | 65 | 26 | M60*2 |
Q/ZB275-7750PM | 97 | 41 | 70 | 30 | M68*2 |
