Close Type Hydraulic Quick Coupling With Color Zinc Plated
| Min. Order: | 50 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, D/A, T/T, WU |
| Supply Ability: | 10000sets/month |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
| Main Products: | Brass Male End Fitting, Brass Male Thread Coupling Fittings, Brass Male Equal Tee Fittings, Brass Male Coupling Fittings, Hydraulic Quick Coupling With Female Plug |
Product Detail
| Model No.: | H003 |
|---|---|
| Means of Transport: | Ocean, Air, Land |
| Brand Name: | OEM |
| Specifications: | 1/4"~2" |
| Rated Pressure: | 2000PSI~5000PSI |
| Rated Flow: | 3~224GPM |
| Temperture Range: | -20℃~+80℃ |
| Material of Seal: | PTFE |
| Surface: | Color Zinc Plated |
| Shape: | Hexagon |
| Technics: | Forging and machine |
| Export Area: | All over the world |
| Material of Body: | Steel |
| Production Capacity: | 10000sets/month |
| Packing: | plastic bag+inner box+cartons |
| Delivery Date: | 15days |
Product Description
Close Type Hydraulic Quick Coupling With Color Zinc Plated
1. Products features
A: The H003 series hydraulic quick coulpings are maninly used for construction equipment,forest equipment,hydraulic machiney and oil equipment and other required hydraulic applications.
B: Poppet valves are available to prevent uncoulped leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expenditely.
C: Critical parts are hardened for durability.
D: H003 series conforms to the standard of ISO7241-A.
E: Compatibale with PARKER 6600 series, FASTER ANV series, AEROQUIP 5600 series and HANSEN HA 15000series.
2. Specifications
Specifications | |||||||||
Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" |
Pressure (PSI) | 3000 | 3000 | 3000 | 3000 | 3000 | 2000 | 2000 | 1500 | |
Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 | 88 | 220 | 224 | |
Temperature | -20℃~+80℃ | ||||||||
Seal Material | Flourocabon | ||||||||

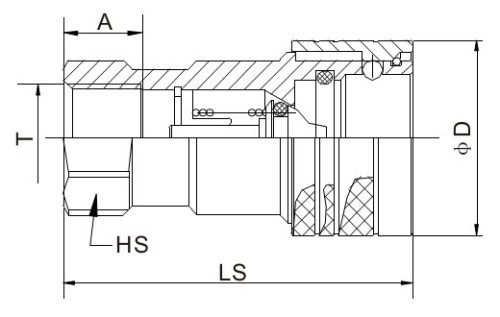

3. Drawing and technology data
| |||||
Part No. | LS | ￠D | HS | A | T |
H003-02SF | 50 | 26 | 19 | 13 | 1/4" |
H003-03SF | 60.5 | 31.5 | 22 | 14 | 3/8" |
H003-04SF | 66 | 39 | 27 | 16 | 1/2" |
H003-06SF | 80 | 48 | 34 | 18 | 3/4" |
H003-08SF | 99.5 | 53 | 41 | 21 | 1" |
H003-10SF | 112 | 69 | 50 | 25 | 11/4" |
H003-12SF | 127.5 | 84.5 | 60 | 25.5 | 11/2" |
H003-16SF | 158 | 99 | 75 | 36 | 2" |
| |||||
Part No. | LP | C | HP | A | T |
H003-02PF | 35.5 | 15 | 19 | 13 | 1/4" |
H003-03PF | 42 | 26.5 | 22 | 14 | 3/8" |
H003-04PF | 46 | 26.5 | 27 | 16 | 1/2" |
H003-06PF | 54 | 28 | 34 | 18 | 3/4" |
H003-08PF | 65.5 | 35 | 41 | 21 | 1" |
H003-10PF | 70 | 45 | 50 | 25 | 11/4" |
H003-12PF | 78 | 51 | 60 | 25.5 | 11/2" |
H003-16PF | 98 | 61 | 75 | 36 | 2" |
