High Quality Close Type Hydraulic Quick Coupling
| Min. Order: | 50 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, D/A, T/T, WU |
| Supply Ability: | 10000sets/month |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
| Main Products: | Brass Male End Fitting, Brass Male Thread Coupling Fittings, Brass Male Equal Tee Fittings, Brass Male Coupling Fittings, Hydraulic Quick Coupling With Female Plug |
Product Detail
| Model No.: | KZE |
|---|---|
| Means of Transport: | Ocean, Air, Land |
| Brand Name: | OEM |
| Specifications: | 1/4"~2" |
| Rated Pressure: | 2000PSI~5000PSI |
| Seal Material: | NBR |
| Temperture Range: | -20℃~+80℃ |
| Material of Seal: | PTFE |
| Surface: | Nickle Plate, Chrome Plated |
| Shape: | Hexagon |
| Technics: | Forging and machine |
| Export Area: | All over the world |
| Material of Body: | Steel |
| Production Capacity: | 10000sets/month |
| Packing: | plastic bag+inner box+cartons |
| Delivery Date: | 15days |
Product Description
KZE Close Type Hydraulic Quick Coupling
1. Products features
A: The KZE series hydraulic quick coupling are mainly Used for construction equipment,forest equipment,hydraulic machinery and oil equipment and other required hydraulic applications.
B: Poppet valves are available to prevent uncloupled leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
C: Critical parts are hardened for durability.
D: The coupling can meet the standard of domestic oil, is the most widely used one of the hydraulic quick coupling.
2. Specifications
Specifications | |||||||||
Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" |
Pressure (PSI) | 5000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2000 | 2000 | 1500 |
Temperature | -20℃~+80℃ | ||||||||
Seal Material | NBR | ||||||||
3. Drawing and technology data
| |||||

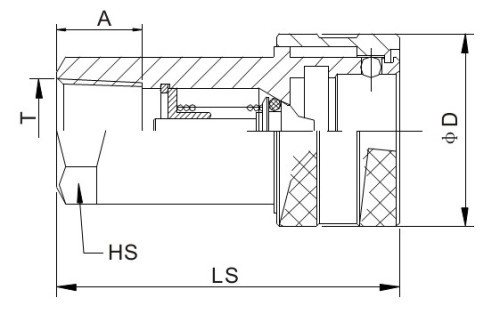

Part No. | LS | ￠D | HS | A | T |
KZE-1SF | 48 | 24 | 14 | 10 | 1/8" |
KZE-2SF | 58 | 28 | 19 | 12.5 | 1/4" |
KZE-3SF | 65 | 35 | 22 | 13 | 3/8" |
KZE-4SF | 66 | 39.5 | 27 | 17 | 1/2" |
KZE-6SF | 79 | 49 | 36 | 18 | 3/4" |
KZE-8SF | 95.5 | 58 | 41 | 21 | 1" |
KZE-10SF | 115 | 70 | 54 | 27 | 11/4" |
KZE-12SF | 124 | 79 | 60 | 27 | 11/2" |
KZE-16SF | 132 | 102 | 77 | 30 | 2" |
| |||||

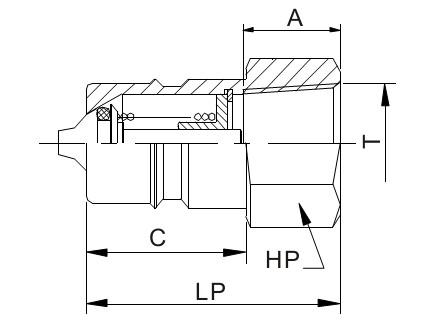

Part No. | LP | C | HP | A | T |
KZE-1PF | 29 | 19.5 | 14 | 10 | 1/8" |
KZE-2PF | 35.5 | 22.5 | 19 | 12.5 | 1/4" |
KZE-3PF | 40 | 25 | 22 | 13 | 3/8" |
KZE-4PF | 46 | 29 | 27 | 17 | 1/2" |
KZE-6PF | 55 | 39 | 36 | 18 | 3/4" |
KZE-8PF | 59.5 | 44 | 41 | 21 | 1" |
KZE-10PF | 70 | 45 | 52 | 27 | 11/4" |
KZE-12PF | 75 | 49 | 60 | 27 | 11/2" |
KZE-16PF | 80 | 52 | 75 | 30 | 2" |
