2-Wire Fixed and Rate of Rise Heat Detector with Remote Indicator
5.0~12.0 USD
| Min. Order: | 1000 Piece/Pieces |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, T/T, WU |
| Supply Ability: | 450000/Month |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
| Main Products: | LED Remote Indicator Sensitive Conventional Flame Detector, 9VDC Block SND-500-S Smoke Alarm, 2-wire Intelligent Addressable Smoke Detector, 2-Wire 60 UA Photoelectronic Smoke Detector, 2 Wire LED Remote Indicator Conventional Heat Detector |
Product Detail
| Model No.: | HNC-310-HL |
|---|---|
| Means of Transport: | Ocean, Air, Land |
| Brand Name: | Numens |
| WIRING: | 2-wire |
| INDICATOR LED: | remote indicator |
| WORK VOLTAGE: | 10.8V to 33V DC |
| QUIESCENT CURRENT: | 40uA |
| ALARM CURRENT: | 50mA |
| TEMPERATURE RANGE: | -20℃ to +60℃ |
| HUMIDITY: | 0% to 95% RH No Condensation |
| SENSITIVITY: | 57℃,A1R |
| DETECTOR CLASS: | Fixed and Rate of Rise Temperature |
| IP RANG: | IP 43 |
| Production Capacity: | 450000/Month |
| Packing: | 1pc/box, 100pcs/ctn |
| Delivery Date: | 15-30days |
Product Description

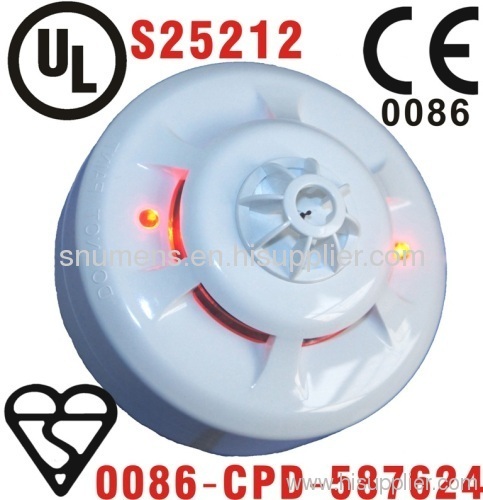

HNC-310-HL
2-Wire Fixed and Rate of Rise Detector with Remote Indicator
HNC-310-HLfixed and rate of rise heat detectors provide fast and reliable response for
heat 57°C (135oF) detection.
The detector may work with most modern fire alarm control panels, and can be installed
with the series 65 of Apollo together,also the series NB 338 of WIZMART and the FEOE 2000 of ZETA etc.
with the series 65 of Apollo together,also the series NB 338 of WIZMART and the FEOE 2000 of ZETA etc.
Features:
1) 2-Wire operation
2) Wide operating voltage
3) Advanced electronic technology
4) Proven detection performance
5) UL ,BSI and CE approval
Specification:
MODEL | HNC-310-HL |
DETECTOR CLASS | Fixed and Rate of Rise Temperature |
SUPPLY WIRING | 2 – WIRE |
DESIGN STANDARD | EN 54-5 and UL 521 |
APPROVAL | CE and UL |
SUPPLY VOLTAGE | 10.8V to 33V DC |
QUIESCENT CURRENT | 40μA @24V |
ALARM CURRENT | 50mA@24V |
TEMPERATURE RANGE | -20℃ to +60℃ |
HUMIDITY | 0% to 95% RH No Condensation |
SENSITIVITY | 57℃,A1R |
IP RATING | IP 43 |
START-UP TIME | 10 Seconds |
DIMENSIONS (dia. x height) | 102 x 45mm (with Base) |
WEIGHTS | 120g (with Base) |
