Optical Conventional 2-Wire Smoke Detector with LED Remote Indicator
3.0~12.0 USD
| Min. Order: | 1000 Piece/Pieces |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, T/T, WU |
| Supply Ability: | 5000000Piece/Pieces/Year |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
| Main Products: | LED Remote Indicator Sensitive Conventional Flame Detector, 9VDC Block SND-500-S Smoke Alarm, 2-wire Intelligent Addressable Smoke Detector, 2-Wire 60 UA Photoelectronic Smoke Detector, 2 Wire LED Remote Indicator Conventional Heat Detector |
Product Detail
| Model No.: | SNC-110-SL |
|---|---|
| Means of Transport: | Ocean, Air |
| Usage: | Smoke |
| Brand Name: | NUMENS |
| IP Rating: | IP 43 |
| Detector class: | Photoelectronic |
| Work voltage: | 10.8~33V DC |
| Quiescent current: | 60uA @ 24V |
| Alarm current: | 50mA @ 24V |
| Temperature range: | -10℃ ~ +55℃ |
| Alarm indicator: | Red LED light continuously emitting |
| Remote indicator: | LED output |
| Approval: | CE (UL is presenting) |
| Material: | ABS/PC |
| Production Capacity: | 5000000Piece/Pieces/Year |
| Packing: | Standard packed 100PCS/Carton;or accordeing to customers' request! |
| Delivery Date: | 15-20days after payment |
Product Description
Smoke Detector-Conventional 2-wire with LED Remote Indicator
Model: SNC-100-SL
Base details:
Model: SNC-100-SL
Description:
SNC-100-SL smoke detector uses a specialized smoke chamber design, which could sense the presence of smoke particles produced by fast combustion or slow smoldering fire.
SNC-100-SL smoke detector is individually tested and calibrated to ensure high reliability and prevent false alarm.
SNC-100-SL work with most modern fire alarm control panels.
SNC-100-SL smoke detector uses a specialized smoke chamber design, which could sense the presence of smoke particles produced by fast combustion or slow smoldering fire.
SNC-100-SL smoke detector is individually tested and calibrated to ensure high reliability and prevent false alarm.
SNC-100-SL work with most modern fire alarm control panels.
Feature:
1) 2-Wire operation with LEC remote indicator
2) Wide operating voltage (10.8~33V)
3) Advanced electronic technology
4) Proven detection performance
5) Designed to meet approvals worldwide (e.g. UL VDS CE EN54-7)
6) Sensor base: optional installation mode.
Specification:
MODEL | SNC-100-SL |
DETECTOR CLASS | Optical Smoke |
SUPPLY WIRING | 2 – WIRE |
DESIGN STANDARD | EN 54-7 and UL 268 |
APPROVAL | CE; |
SUPPLY VOLTAGE | 10.8V to 33V DC |
QUIESCENT CURRENT | 60μA @24V |
ALARM CURRENT | 50mA@24V |
TEMPERATURE RANGE | -10℃ to +55℃ |
HUMIDITY | 0% to 95% RH No Condensation |
SENSITIVITY | UL:2.3%FT; EN 54:0.15dB/m |
IP RATING | IP 43 |
START-UP TIME | 10 Seconds |
DIMENSIONS (dia. x height) | 99 x 46mm (with Base) |
WEIGHTS | 130g |

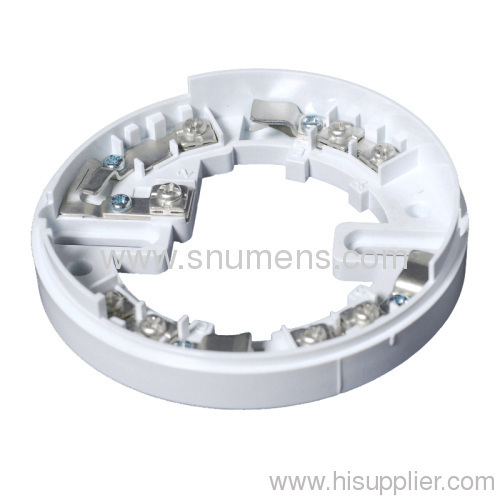

Base details:
