Remote LED indicator output 2-wire conventional photoelectric smoke detector
1.0~6.0 USD
| Min. Order: | 1000 PCS |
|---|---|
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000 Pieces per month |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Ningbo, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer, Trading Company |
| Main Products: | LED Remote Indicator Sensitive Conventional Flame Detector, 9VDC Block SND-500-S Smoke Alarm, 2-wire Intelligent Addressable Smoke Detector, 2-Wire 60 UA Photoelectronic Smoke Detector, 2 Wire LED Remote Indicator Conventional Heat Detector |
Product Detail
| Model No.: | SNC-100-SL |
|---|---|
| Means of Transport: | Ocean, Air |
| Usage: | Smoke |
| Brand Name: | Numens |
| Wiring:: | 2 wire |
| Power supply:: | 10.8 to 33 V DC |
| Quiescent current:: | 60 uA |
| Alarm current: | 50 mA |
| Temperature:: | -10℃ to +55℃ |
| DETECTOR CLASS: | Photoelectronic |
| APPROVAL: | CE |
| Remote Indicator: | LED output |
| QUIESCENT CURRENT: | 60μA @24V |
| ALARM CURRENT: | 50mA@24V |
| Production Capacity: | 100000 Pieces per month |
| Packing: | INNER BOX; 100PCS/CTN |
| Delivery Date: | 30DAYS |
Product Description
Product name:
Remote LED indicator output 2-wire conventional photoelectric smoke detector
Model No.: SNC-100-SL
Remote LED indicator output 2-wire conventional photoelectric smoke detector
Model No.: SNC-100-SL
Description:
Model SNC-100-SL smoke detector uses a specialized smoke chamber design, which could sense the presence of smoke particles produced by fast combustion or slow smoldering fire. It may work with most modern fire alarm control panels.
Feature:
1) 2-Wire operation
2) Wide operating voltage
3) Advanced electronic technology
4) Proven detection performance
5) Designed to meet approvals worldwide (e.g. UL VDS CE)
6) Sensor base: optional installation mode.
Specification:
MODEL | SNC-100-SL |
DETECTOR CLASS | Optical Smoke |
SUPPLY WIRING | 2 – WIRE |
DESIGN STANDARD | EN 54-7 and UL 268 |
APPROVAL | CE; |
SUPPLY VOLTAGE | 10.8V to 33V DC |
QUIESCENT CURRENT | 60μA @24V |
ALARM CURRENT | 50mA@24V |
TEMPERATURE RANGE | -10℃ to +55℃ |
HUMIDITY | 0% to 95% RH No Condensation |
SENSITIVITY | UL:2.3%FT; EN 54:0.15dB/m |
IP RATING | IP 43 |
START-UP TIME | 10 Seconds |
DIMENSIONS (dia. x height) | 99 x 46mm (with Base) |
WEIGHTS | 130g |

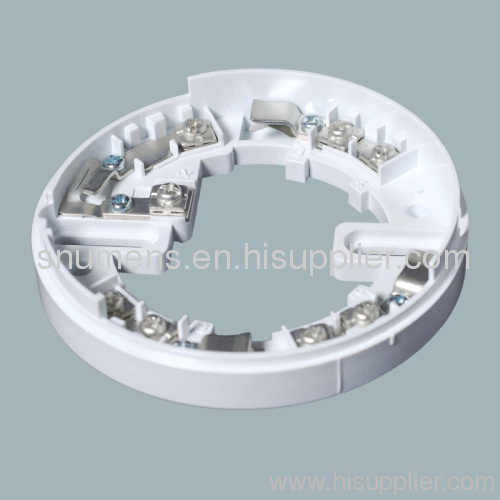

Base details:
Subassembly
AMBEST Sales and Service
1.your inquiry related to our products or prices will be replied in 12 hours
2.well-trained and experienced staffs to answer all your enquires in English
3.OEM & ODM
4.Protection of your sales area, ideas of design and all your private information
Trade Term:
1.Minimum Order 1000pcs(accept trial order);
2.Delivery Details within 20days (Sample can be delivered within 3 days);
3.Discount are offered based on order quantity;
