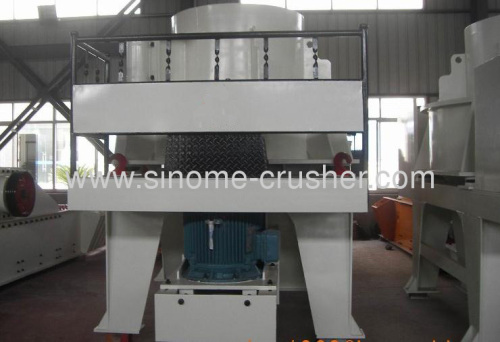

Good quality Deep Rotor Vertical Shaft Impact Crusher VSI B-7615DR
2000.0~300000.0 USD
| Min. Order: | 1 unit |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 30units/month |
| Place of Origin: | Shanghai |
Company Profile
| Location: | Shanghai, China (Mainland) |
|---|---|
| Business Type: | Manufacturer |
| Main Products: | PF Series High Efficiency Impact Crusher PF1315, PE Series Stone Jaw Crusher PE500×750, 5t Wheel Loader SME50, 6t Wheel Loader For Rocky Condition, PEW Series Stone Jaw Crusher PEW 1100 |
Product Detail
| Model No.: | B-1145DR |
|---|---|
| Means of Transport: | Ocean, Land |
| Application: | Ore |
| Type: | Crusher |
| Colour: | White or customized |
| Size: | 5000×2790×3320mm |
| Certificate: | CE;ISO |
| Feed at center&sides: | 500-640t/h |
| Feed at center: | 250-360t/h |
| Max.Feeding(Soft Material): | 50mm |
| Max.Feeding(Hard Material): | 45mm |
| Production Capacity: | 30units/month |
| Packing: | standard seaworthy packing |
| Delivery Date: | 30 days |
Product Description
1. Optimize deep cavity-type rotor design to increase material pass-through volume by 30%.
2. Modular-design hammer used to replace worn parts when wear out, reducing cost more than 30%.
3. The core abrasion-resistant material of high degree wear-resistant and temperature-resistant material.
4. Diamond-shaped impact block avoids stand plate being damaged after worn out.
5. Bearing use Swedish and American famous brand.
6. Optimal shooting mouth and more fluid curve-shaped design reduce the resistance to the material flow, improving material pass-through capacity as well.
7. Special seal structure in the spindle end, ensure no oil leak even without oil seal.
8. Hydraulic openings device uses Japan imported parts, it is easy and quick to move upper lid, so the internal mechanical overhaul and replacement cost less labor effort.
9. Adopts high protection motor featuring high efficiency and low noise.
| Model | B-7615DR | B-8522DR | B-9532DR | B-1145DR | |
| Capacity (t/h) | Cascade and central feeding | 150~280 | 240~380 | 350~540 | 500~640 |
| Central feeding | 70~140 | 120~200 | 180~280 | 250~360 | |
| Max.Feeding dimension (mm) | Soft material | <35 | <40 | <45 | <50 |
| Hard material | <30 | <35 | <40 | <45 | |
| Rotation speed(r/min) | 1700~1900 | 1500~1700 | 1300~1510 | 1100~1310 | |
| Double motor power (kw) | 110~150 | 180~220 | 260~320 | 400~440 | |
| Overall dimension (LxWxH)(mm) | 4100×2330 ×2300 | 4140×2500 ×2700 | 4560×2600 ×2900 | 5100×2790 ×3320 | |
| Weight(t) | 8.6 | 11.8 | 17.5 | 27.5 | |
| Power | 380v,50Hz | ||||
| Labrication System | Double pump motor power | 2X0.31kW | |||
| Safety | Altemative double pump oil supply;machine stops automaticallywithout oil flow or oil pressure.water cooling,motor warm start inwinter. | ||||
| Overall dimension (LxWxH) | 820X520X1270 | ||||
| Gasoline tank heating power | 2KW | ||||
