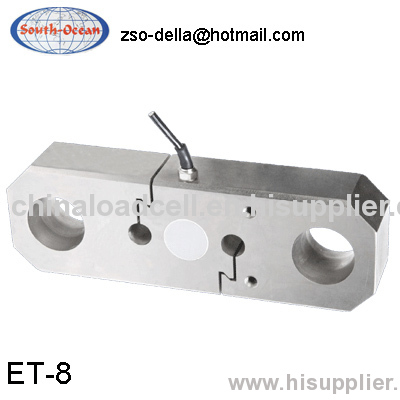

Tension load cell sensor,crane scae load cells, weighing load cells,10t~55t
100.0~720.0 USD
| Min. Order: | 1 Piece/Pieces |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000~200,000pcs/month |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Huzhou, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer |
| Main Products: | Sensor, Load Cell, Mounting, Junction Box, And Other Accessories |
Product Detail
| Model No.: | ET-8 |
|---|---|
| Means of Transport: | Express, Ocean, Air, Land |
| Output: | Analog Sensor |
| Theory: | Resistance Sensor |
| Usage: | Others |
| Brand Name: | South-Ocean, OEM, or no mark |
| Material: | Alloy Steel |
| Capacity: | 10t~55t |
| Other service: | OEM, Custom made |
| Production Capacity: | 100,000~200,000pcs/month |
| Packing: | Standard carton |
Product Description
Specification | |
Rated Output(mV/V) | 2.00±0.005 |
Nonlinearity | ±0.02%FS |
Hysteresis | ±0.02%FS |
Repeatability | ±0.01%FS |
Creep(30 minutes) | ±0.02%FS |
Zero balance | ±1.00%FS |
Temperature effect on zero | ±0.02%FS/10℃ |
Temperature effect on output | ±0.02%FS/10℃ |
Input resistance(Ω) | 385±10 |
Output resistance(Ω) | 350±3 |
Insulation resistance | ≥5000MΩ |
Excitation voltage | 10V(DC/AC) |
Compensated temperature range | -10~+50℃ |
Operating temperature range | -20~+60℃ |
Safe overload | 120%FS |
Cable | Φ5.4* 6m |
Cable color code | Input: red+ black- Output: green+ white- |
