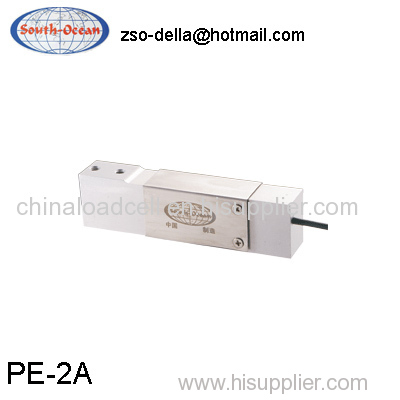

single point load cells, aluminum, stainless steel,3kg~100kg
9.0~18.0 USD
| Min. Order: | 1 Piece/Pieces |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000~200,000pcs/month |
| Place of Origin: | Zhejiang |
Company Profile
| Location: | Huzhou, Zhejiang, China (Mainland) |
|---|---|
| Business Type: | Manufacturer |
| Main Products: | Sensor, Load Cell, Mounting, Junction Box, And Other Accessories |
Product Detail
| Model No.: | PE-2A |
|---|---|
| Means of Transport: | Express, Ocean, Air |
| Output: | Analog Sensor |
| Theory: | Resistance Sensor |
| Usage: | Pressure Sensor |
| Brand Name: | South-Ocean, OEM, or no mark |
| Material: | Aluminum |
| Capacity: | 3kg~100kg |
| Other service: | OEM, Custom made |
| Production Capacity: | 100,000~200,000pcs/month |
| Packing: | Standard carton |
Product Description
Specification The general data of South-Ocean as below, but we can design and manufacture various kinds of load cells to meet different customers' demands. | ||
Characteristic | Double parallel cantilever beam load cell. Temperature compensated and four corners adjusted. Low profile, small size. | |
Materials | Aluminum , stainless steel | |
Suitable for | Electronic price computing scale, table top scale, platform scale and other small capacity electronic scale. | |
Capacity | 3KG~100KG | |
Sensitivity | 2.00±0.10 | MV/V |
Nonlinearity | ±0.02 | %FS |
Hysteresis | ±0.02 | %FS |
Repeatability | ±0.01 | %FS |
Creep(30 minutes) | ±0.1 | %FS |
Zero balance | ±1.00 | %FS |
Temperature effect on zero | ±0.02 | %FS/10℃ |
Temperature effect on output | ±0.02 | %FS/10℃ |
Input resistance | 410±15 | Ω |
Output resistance | 350±3 | Ω |
Insulation resistance | ≥5000 | MΩ |
Excitation voltage | 10 | V(DC/AC) |
Compensated temperature range | -10~+50 | ℃ |
Operating temperature range | -20~+60 | ℃ |
Safe overload | 120 | %FS |
cable | Φ5.4X3 | M |
Cable color code | Input: red+ black- Output: green+ white- | |
