Carrot 5000*3 pixel CCD color sorter

33000.0~52000.0 USD
Min. Order: 1 Set/Sets
Trade Term: FOB
Payment Terms: L/C, T/T, WU
Supply Ability: 25sets/Month
Place of Origin: Anhui

Company Profile

Location: Hefei, Anhui, China (Mainland)
Business Type: Manufacturer, Trading Company
Main Products: Nuts Color Sorter, Seeds Color Sorter, Rice Color Sorter, Dehydrated Fruit And Vegs Color Sorter, Plastic Color Sorter

Product Detail

Model No.: HJ-C3R
Means of Transport: Ocean
Brand Name: TORCH
Color: Blue/Green
Material of frame: Steel or stainless steel
Size: 149*142*143cm
Camera: SONNY
Filter: YSC/CKD
Place of origin: Hefei,China
Production Capacity: 25sets/Month
Packing: In wooden case
Delivery Date: 20 days
Show

Product Description

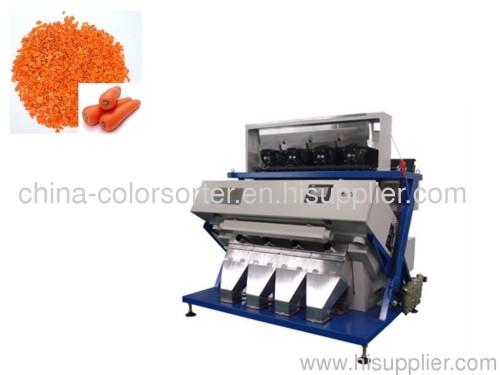

Carrot color sorter
Carrot 5000*3 pixel CCD color sorter
Description:

1.Our control chip is made in the USA.The combination of DSP and FPGA produces powerful computing capabilities.It has extremely fast data collection and can process large amounts of information and perform various operations stimultaneously.Distinguished performance to kinds of colorful products in graininess

2.300mm wide chute which is smoothness, abrasion-resistance, resistance to wear and tear and corrosion-resistance is built with a special anodizing process and was designed to meet specifications required for many applications around the world.

3.CCD Camera:A Japanese high-end 5000*3 pixel CCD chip camera can identify spots as small as 0.04mm.When coupled with intelligent algorithms,the optical design provides a more accurate color selection.

4.Ejectors: Matrix from Italy.The ejectors contain a high-frequency electromagnetic solenoid valve that operate with a 14 billion millisecond precision and a consistency of near-zero error to ensure high accuracy.

5.Adopted with high-brightness,lasting stability and longer life-time LED light which not only help save more power but also reduce cost.

6.Professional researching and developing team have researched a special program which make the machine easily distinguished different color with the program,such as red,blue,green,yellow and so on.the program can ensure the sorter have a distinguished sorting effect.

7.Large LCD touch screen,a friendly user interface, easy to learn and operate.


Competitive Advantage:
1.5000*3 pixel CCD camera and photo processing technology
2. Recognition accuracy up to 0.04mm
3. Passed CE, UL, ETL, ISO9001
4. LED TFT real 10 inch screen
5. Self checking system

6.Matrix ejector make sure the performance of machine more stable.


Specification of Carrot 5000*3 pixel CCD color sorter:

PARAMETER OF COLOR SORTER

ITEM.NO

HJ-C2R

HJ-C3R

HJ-C4R

HJ-C5R

HJ-C6R

Machine weight(kg)

850

900

950

1050

1150

Channels

126

189

252

315

378

Cameras

4

6

8

10

12

Light source

LED light

LED light

LED light

LED light

LED light

Pixel of camera

5000*3

5000*3

5000*3

5000*3

5000*3

Ejector

Matrix

Matrix

Matrix

Matrix

Matrix

CCD chip

Japan

Japan

Japan

Japan

Japan

The smallest size recognition

0.04mm

0.04mm

0.04mm

0.04mm

0.04mm

Sorting accuracy

>99.95%

>99.95%

>99.95%

>99.95%

>99.95%

Rejection ratio

>10:1

>10:1

>10:1

>10:1

>10:1

Host power

1.0

1.2

1.4

1.6

1.8

Air pressure

≥0.6Mpa

≥0.6Mpa

≥0.6Mpa

≥0.6Mpa

≥0.6Mpa

Air consumption (L/min)

500-1500

600-2000

700-2500

800-3000

850-3500

Radiating mode

Wind cooling

Wind cooling

Wind cooling

Wind cooling

Wind cooling

Power supply (Voltage/HZ)

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

Package Material

Wooden case

Wooden case

Wooden case

Wooden case

Wooden case

Warranty

12 months

12 months

12 months

12 months

12 months


Spare parts of Carrot 5000*3 pixel CCD color sorter:

Air storage tank
Volume of storage: one cube meter


Carrot color sorter

Air compressor
Power:11kw+11kw
Voltage and frequency:380V/50HZ

Carrot color sorter

Workshop of Carrot 5000*3 pixel CCD color sorter:
Carrot 5000*3 pixel CCD color sorter

Packing Details of Carrot 5000*3 pixel CCD color sorter:
The machine and spare parts would be packed in 4 wooden cases as below:
Case No 1:color soter
Case No 2:air compressor
Case No 3:air storage tank
Case No 4:spare parts

Carrot 5000*3 pixel CCD color sorter
Carrot 5000*3 pixel CCD color sorter

Flow chart of Carrot 5000*3 pixel CCD color sorter:
Carrot 5000*3 pixel CCD color sorter

Drawing of HJ-C3R Carrot 5000*3 pixel CCD color sorter's feeder hopper and work table:
Carrot color sorter
Carrot color sorter
